Inline Slurry Production Technology
TDS Inline High-speed Disperser
TDS Inline High-speed Disperser
The Double Planetary Power Dispersing Mixer (For Battery production) consists of two sets of low-speed agitators and two sets of high-speed dispersers.
MOFA Battery Slurry Production Equipment
MOFA Battery Slurry Production Equipment
MOFA Slurry Production Equipment, a high-performance on-line high-speed slurry production system, specially developed by SIEHE SMART for the powder
Automatic High speed Slurry Production System
Automatic High speed Slurry Production System
All-round Horizontal Beads Mill is a Nano Grade liquid grinding machine for closed continuous production.
Mixing Slurry Production Technology

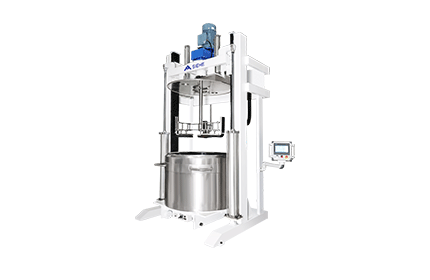

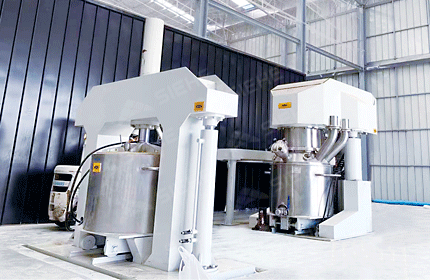

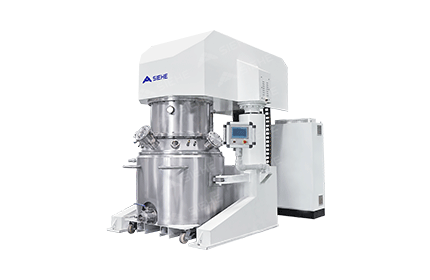

Powerful Double Planetary Dispersing Mixer
Powerful Double Planetary Dispersing Mixer
With full specification including lab one, pilot one and industrial production one, special mixing machine for high-viscosity slurry/paste.
Powerful Double Planetary Dispersing Mixer (BATT)
Powerful Double Planetary Dispersing Mixer (BATT)
SIEHE SMART provide EPC Project Contracting including Adhesive System Line, Oily Putty System Line

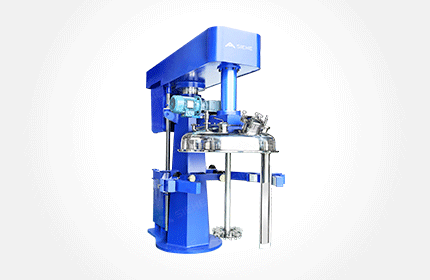

Multi-functional Dispersing Mixer
Multi-functional Dispersing Mixer
Includes Double shaft Multi-functional Dispersing Mixer，Triple shaft Multi-functional Dispersing Mixer, Butterfly Dispersing Mixer etc..

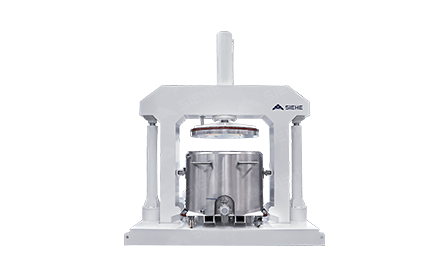

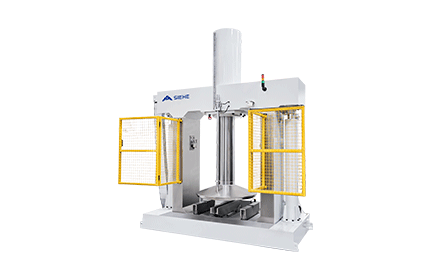

Extrusion Machine
Extrusion Machine
Extrusion (Discharging) machine is corollary equipment for Powerful Double Planetary Dispersing Mixer or Multi-functional Dispersing Mixer.

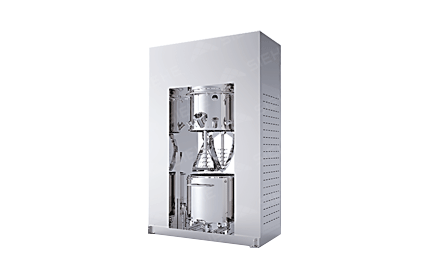

Container Washing Machine
Container Washing Machine
Container Washing Machine is a corollary equipment for Powerful Double Planetary Dispersing Mixer or Multi-functional Dispersing Mixer.
Nano Paste Grinding Technology

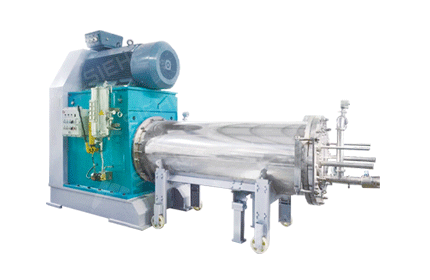

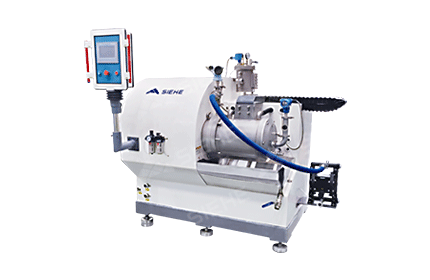

Disc Type Horizontal Beads Mill
Disc Type Horizontal Beads Mill
Large-flow Horizontal Beads Mill is a closed continuous production machine for grinding liquid materials. It is one of the earliest wet grinding machines in the market with good performance and mature structure. And it is characterized in simple operation, good reliability and full specifications. Its sealing structure adopts double end mechanical seal with self-lubricating system, more reliable and durable. The machine is also with temperature, pressure monitor and protection to ensure the quality of the finished product. Using cerium stabilized zirconium bead or yttrium stabilized zirconium bead, it is characterized in high grinding efficiency, excellent grinding result, wide application range and good wear resistance.

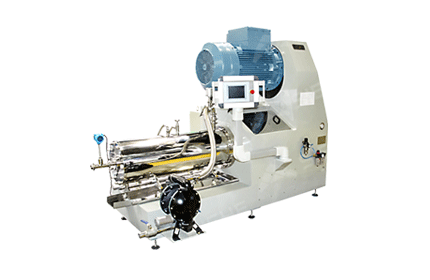

Ultra-fine Large-flow Horizontal Beads Mill
Ultra-fine Large-flow Horizontal Beads Mill
Nano Horizontal Beads Mill is a closed continuous production machine for grinding liquid materials. Comparing with traditional grinding equipment, it uses Yttrium stabilized zirconium beads with higher specific gravity and higher hardness as grinding medium. And it shows higher grinding efficiency (2 to 3 times higher), better final fineness (nano grade), wider application (Available for mid and high viscous materials) and better wear resistance. Ful specifications are in option, easy operation and high reliability. It adopts world well-known brand Burgmann Dual-end Mechanical Seal, with self-lubricating system, more reliable and durable. The machine is also with temperature, pressure monitor and protection to ensure the quality of the finished product.

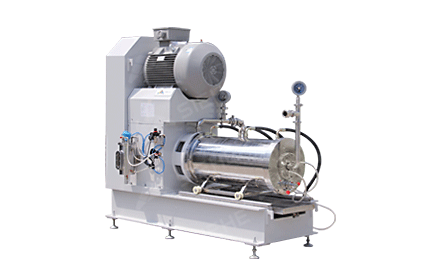

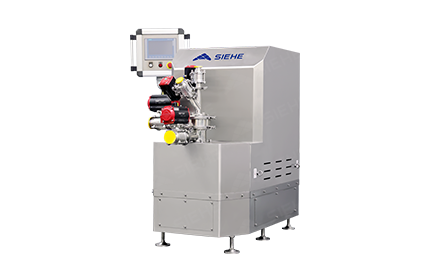

Ultra-fine Pin Type Horizontal Beads Mill
Ultra-fine Pin Type Horizontal Beads Mill
Non-metal Nano Horizontal Beads Mill is specially designed equipment by SIEHE SMART for battery industry (Lithium iron phosphate battery positive electrode materials, silicon-based negative electrode materials, lithium titanate, sulfur composite materials, etc.), ceramic materials (Alumina, zirconia, silicon carbide, etc.), rare earth materials (yttrium oxide, indium, cerium, etc.) which are sensitive to metal ions and require high material fineness. The rotor structure is specially designed, its quantity, volume and installation position are designed according to fluid mechanics to achieve the maximum specific grinding energy, improve the grinding efficiency, and grind the materials down to nanometer level. The minimum fineness can reach less than 50nm measured by the Malvern Laser Particle Tester.
Non-metal Nano Horizontal Beads Mill
Non-metal Nano Horizontal Beads Mill
Non-metal Nano Horizontal Beads Mil is a continuous production machine for grinding liquid materials. The internal components of the equipment are of all-ceramic structure, free of metal pollution. It is widely used in metal-sensitive slurry such as lithium iron phosphate battery cathode materials, nano-silicon powder, carbon nanotubes, nano-calcium carbonate and other materials. The driving dispersing device can be turbine type, impeller type and pin type. The grinding medium with best movement path to improve the grinding efficiency greatly; The length/diameter ratio of the grinding chamber is carefully designed, the energy distribution in the grinding chamber is reasonable, and the energy consumption is low. The material of the grinding chamber can be silicon carbide, which makes the machine wear resistance and also ensures cooling effect; Use φ 0.2mm-1.2mm yttrium stabilized zirconium beads (95% zirconium content). The machine is featured in excellent grinding fineness, generally can grind materials down to below 5 microns, and some can reach sub-micron or even nano level. The sealing structure adopts double-end mechanical seal equipped with self-lubricating system. The sealing liquid shall be compatible with the material. With German mechanical seal technology, perfluorinated sealing ring, it can withstand multiple solvents. The mechanical seal is with good reliability and durability;
Turn-key Project
Adhesive System Line
Adhesive System Line
Adhesives consists of bonding material, curing agent, toughening agents, diluents, fillers, modifier composition etc., great variety and widely used in civil construction, paper and plants, automobiles, airplanes and ships, electronic and electrical, medical health and so on. SIEHE SMART has rich production experience in adhesives (Epoxy resin system, polyurethane system, acrylic resin system, etc.), and have a good command of powder drying system, powder batching and conveying system, liquid batching and conveying system, packing system, automatization control systems and so on. In addition, we have made an important breakthrough in the field of mixing, and developed a variety of new products (Dual Shaft Dispersing Mixer, Tri-shaft Multi-functional Dispersing Mixer, Powerful Dual Planetary Dispersing Mixer etc.), greatly improves the uniformity and efficiency of the product mixing. SIEHE Smart offers services for whole plant output, project EPC.
Oily Putty System Line
Oily Putty System Line
Oil putty is a high polymer material, consists of the main ash (base ash) and the curing agent , the composition of the main ash is mainly unsaturated polyester resin and a filler, and the curing agent is generally initiator and a plasticizer, they play a role of initiating polymerization and enhancing performance. This nature of the material which can adhere to the surface of other material and prototyping rapidly is especially suitable for surface coatings applications, including automobiles, ships, factories, furniture, sheet metal etc.;in addition, there are also oily putties of high temperatures resistance, conducting electrostatic, red gray, fine scratch, weld etc..

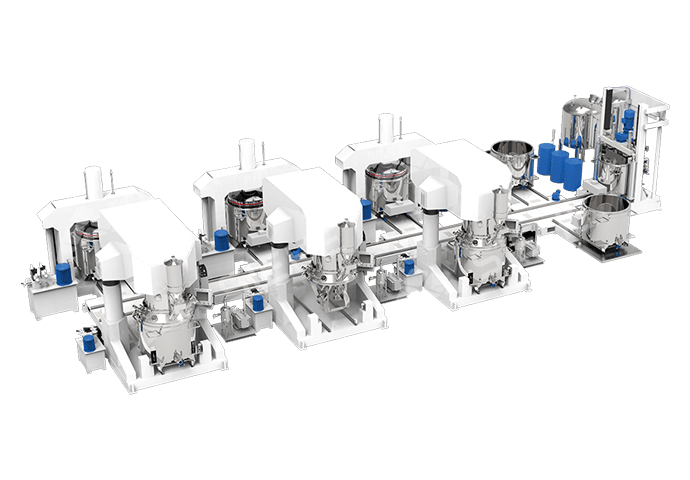

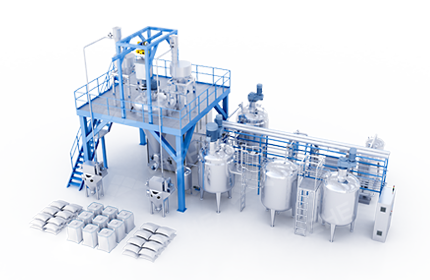

Battery Slurry System Line
Battery Slurry System Line
Double Planetary Mixer Slurry Production System is a system line with high automatization. It is based on the Double Planetary Power Dispersing Mixer, together with the powder raw materials batching system, liquid raw materials ( including additives) batching system, conveying system, post-processing system(including cooling, filtration, iron removal, de-foaming) and finished products storage system. The system line includes following process parameter control: Temperature control, pressure detection, flow control, viscosity control etc.. With a touch screen to achieve visual production to reduce the labor cost, improve product quality. Green production contributes to Green Earth

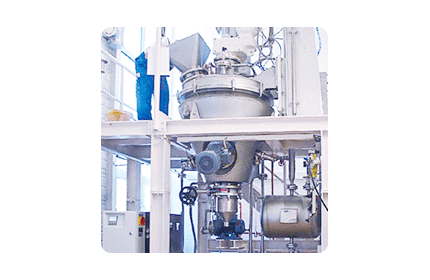

Vertical Ribbon Vacuum Dryer
Vertical Ribbon Vacuum Dryer
Vertical Ribbon Vacuum Dryer is a multi-function mixer combines mixing, reaction and drying. It is widely used in industries of food, adhesive, lithium battery, etc. The mixer is equipped with heating jacket, and its main shaft and ribbons can be also with heating function (to improve drying efficiency furthermore). Its main shaft is with mechanical seal to achieve high vacuum sealing effect. Connecting to the vacuum system, it can realize efficient drying (the drying efficiency is 3-5 times than that of the double cone rotary vacuum dryer with same specification); In front of the vacuum system, it is equipped with a dust collector, a condensation recycle device, a solid-gas separation device, etc., in order to reduce the loss of raw materials and environmental pollution as much as possible. The whole system can be designed with PLC intelligent control (such as temperature, vacuum degree, speed, etc.), and with signal interface to realize remote control.

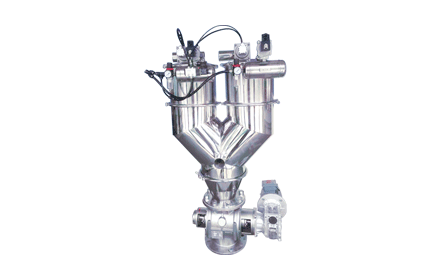

Vacuum Feeder
Vacuum Feeder
Vacuum Feeder from SIEHE SMART is newly developed product based on introduced counterparts in market at both home and abroad. It is the most advanced, ideal, improved vacuum feed for powder, granule and mixture of powder and granule in China. Its working principle is as following: Vacuum Feeder consists of vacuum pump (oil-free, water-free), vacuum hopper, filter (polyester film filters, PE filter, 316L stainless steel filter or titanium metal filter etc are in options), compressed air reverse blow device, pneumatic materials-discharge gate device, level automatic control device, stainless steel materials suction nozzle, delivery hose and other components. When working, vacuum pump generates negative pressure which generates vacuum airflow. Material are sucked into the suction mouth and form gas-and-materials stream. The stream goes to the hopper of the Vacuum Feeder through the materials suction pipeline. And the filter separates the materials from the air completely. When materials fill up the hopper, the controller will cut off the air source automatically, the vacuum generator stop working, the hopper outlet valve will open automatically and materials fall into the hopper of the machine.

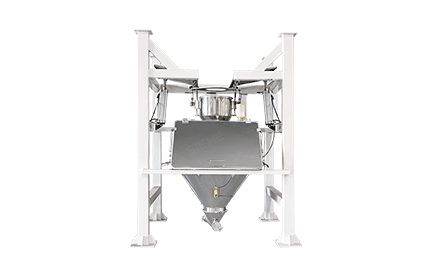

Powder Unpacking Station
Powder Unpacking Station
The T-bag Unpacking and Feeding Station is used for unpacking and discharging powder and granules in T-bag. This equipment consists of the rack, lifting device, diaphragm valve, temporary storage bin and so on; Two types: Use hoist or forklift according to production technology and equipment size. Dual track is optional for occasion of two electric hoist installation to increase the bag unpacking efficiency. The materials for the machine can be carbon steel or stainless steel. The whole machine is with good airtightness, easy to operate, which improve the working environment and also the production efficiency significantly.
