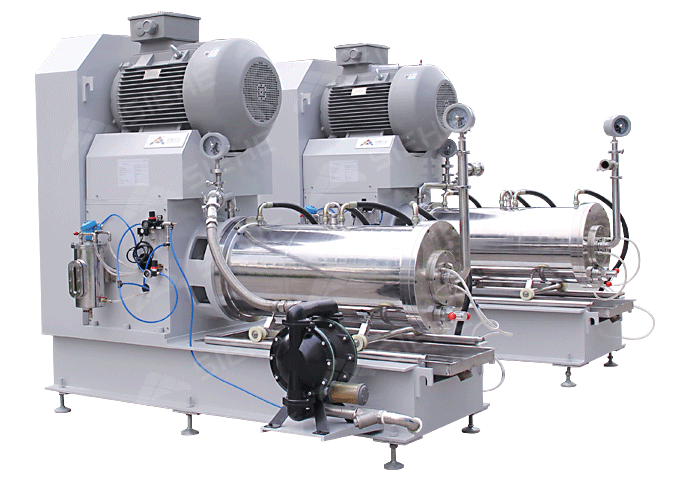

The Disc Type Horizontal Beads Mill is a closed continuous production machine for grinding liquid materials. It is one of the most popular wet grinding machines in the market with good performance and mature structure. And it is characterized in simple operation, good reliability and full specifications. Its sealing structure adopts double end mechanical seal with self-lubricating system, sealing liquid is optional, more reliable and durable. The machine is also with temperature, pressure monitor and protection to ensure the quality of the finished product. Using cerium stabilized zirconium bead (80% Zirconia content), suitable for grinding paste with fineness requirements of 10-20 micron. It is widely used in coating, paint, ink, pesticide and other industries.
Specification |
Chamber volume (L) |
Power (KW) |
Main shaft speed (rpm) |
Grinding medium (mm) |
Capacity (L/h) |
Cooling water consumption (L/h) |
SWS-20 | 20 | 18.5 | 1030 | 1.6~2.2 | 120-500 | 800-1500 |
SWS-30 | 30 | 22 | 1030 | 1.6~2.2 | 150-600 | 800-1500 |
SWS-50 | 50 | 30 | 830 | 1.6~2.2 | 300-1000 | 1500-2500 |
SWS-100 | 100 | 55 | 568 | 1.6~2.2 | 500-2000 | 2000-4000 |
SWS-300 | 300 | 110 | 468 | 1.6~2.2 | 1000-4000 | 2000-6000 |
